PVC FOUR STRANDS ELECTRICAL CONDUIT PIPE EXTRUSION LINES DIAMETER 16-32MM
The complete extrusion consists of following items:
- Conical Twin Screw Extruder:
It is used for melting and stirring plastic material. We adapts special screw and barrel type that provide perfect mixing and homogenous.
We use special gear box for the Extruder which has axial bearings. Transfer the motor to the screw. For minimizing electricity consumption, we use the famous brand of driving motor of “SIEMENS” on our Extruder. Automation system designed with PLC and touch panel controller can be selected.
The die head and die system is manufactured with melt flow channels designed to ensure excellent performance in whole range of pipe diameter. According to the material characteristic of pipe, the designing of the die head and die system changes and even at high extrusion pressure. It gives perfect outcome.
The Vacuum Tanks are manufactured with stainless steel.
Our nozzles designing for maximum cooling performance. Cooled water sprinkles to hot plastic pipe outside face from the nozzles.
With high power water pump, cooled water can reach to pipe completely.
Our vacuum tank’s pressure can be adjusted, so vacuum pressure can be fixed according to pipe requirement. We sealing gasket for every lid on the vacuum tank. This stops vacuum leakage and minimizing energy consumption.

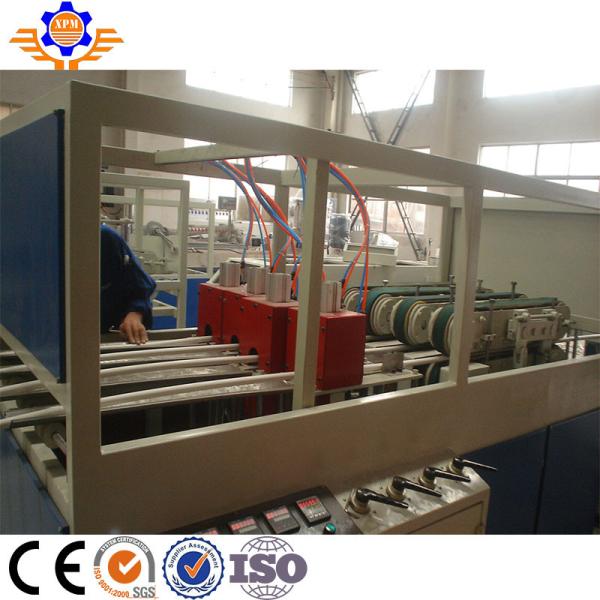

- FOUR Strands Belt Type Haul-offs:
The belt haul-off is used for high speed extrusion of small pipe. it is free from vibration and ensure the excellent control even at high speed.
With the material we have used in our haul-offs, we have very good adhesion to the pipe and ensure slip prevented.
The needed speed for setting of belts can be changed with electrical inverter. Different line speeds are adjusted by using control panel easily.
Automatic cutting unit, that is ideal solution for small and medium size pipes. It works synchronic with belt haul-off.
Pipe length to be cut is easily adjusted via the touch screen.
Pipe length measure by encode so desired length can cut precisely.
- FOUR Strands Tipping Table:
- It operates on pneumatic cylinder.
SPECIFICATIONS:
| MODEL | PIPE DIAMETER (MM) | EXTRUDER MODEL | MOTOR POWER (KW) |
| XPM-32 | 16-32 (FOUR PIPE) | SJSZ65/132 | 37 AC |
| XPM-32 | 16-32 (FOUR PIPE) | SJSZ80/156 | 55 AC |
|
|
